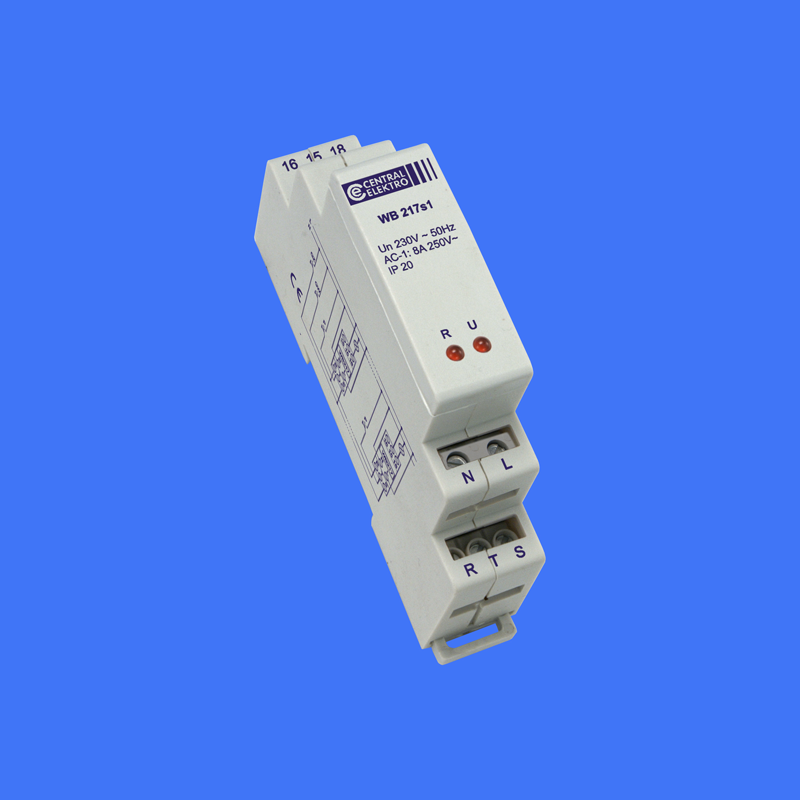

| Hotel latching relay WB 217 s1 | |||
 |
|
Category: Latching relays Housing to mount on TH35 rail (1 module) Download instruction WB 217 s1  |
|
|
Net price: 60,00 zł |
|||
 |
 |
||

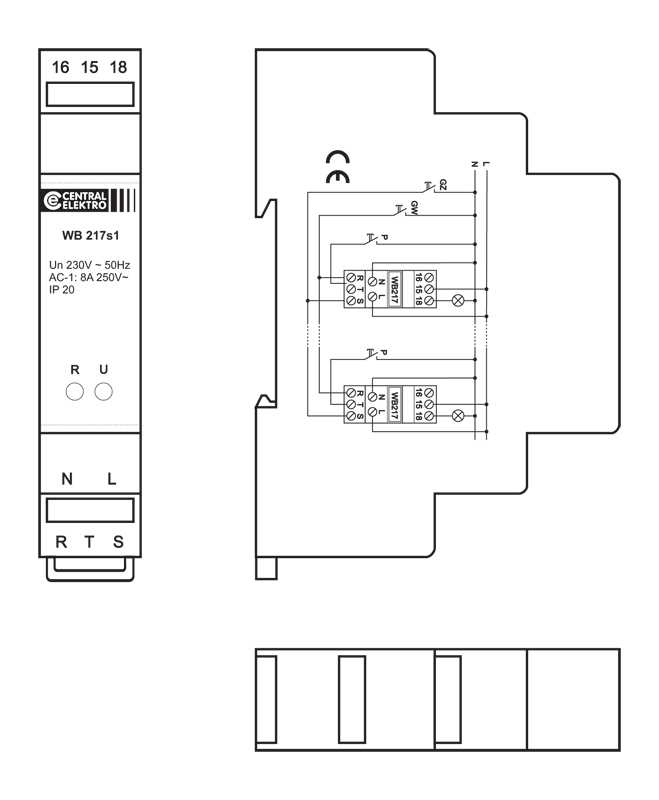

Hotel latching relays are used for switching on/off electrical devices from any of freely selectable points by means of parallel-connected triggering push-buttons linked with the switch by means of two-conductor wire. Pressing any triggering push-button connected to the input T switches device on, pressing the same or any other push-button second time switches device off. |
|||
| In addition, the relay has two inputs for group control, switching on S and off R. By combining inputs R and S of several relays parallelly we enable switching on or off the group with one button. Triggering push-buttons work currentlessly. To connect buttons is sufficient wire cable 2x0,35mm2. The relay meets all the safety requirements of the standard DIN EN 60669-1,2. | |||
| Operation mode: | continuous (C) |
| Noise level: | normal (N) |
| Contact type: | SPST - change-over |
| Contact rated current (at cosφ=1): | 16A |
| Rated voltage of the contact: | 250V AC |
| Protection class: | IP 20 |

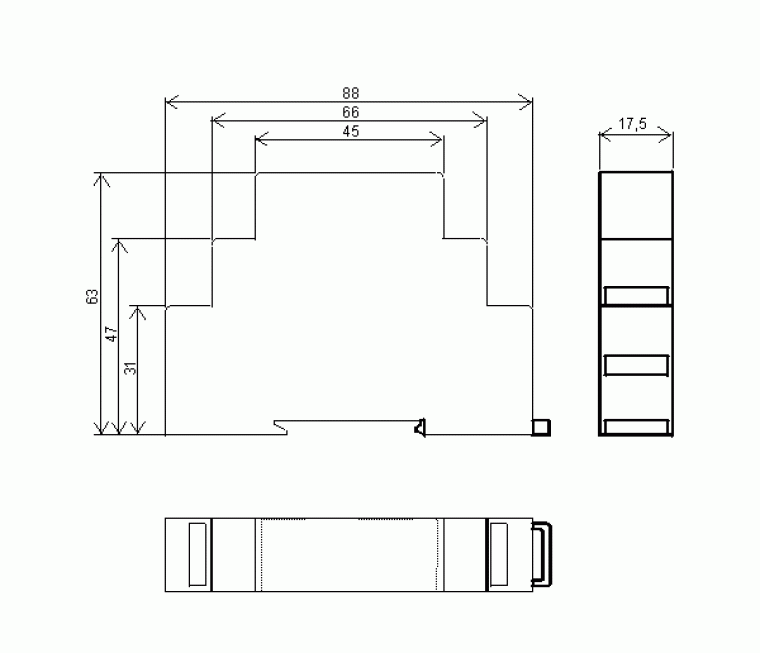

| Housing dimentions: | type S1, 88x63x17,5 mm (1 module) |
| Weight: | 60g |
| Connections: | screw terminals |
| Manner of mounting: | on TH35 rail |
| Maximum lamp rating: | |
| - for bulbs and halogen lamps | 1200VA |
| - for uncompensated fluorescent lamps | 800VA |
| - for parallel-compensated fluorescent lamps | 300VA |
| - for energy saving lamps | 5x20VA |
| Rated supply voltage/frequency: | |
| WB 217 s1/230 | 230V AC, +10%, -15%, 50Hz |
| WB 217 s1/110 | 110V AC |
| WB 217 s1/24 | 24V AC/DC |
